Pillow block shaft assemblies are critical components that support rotating shafts while reducing friction and wear. This guide highlights top options that balance durability, ease of installation, and cost. The selections below cover solid cast-iron bases, self-aligning bearings, and options designed for common shaft diameters. Each product is evaluated for long-term performance in industrial and DIY setups, offering reliable support for precision equipment, automotive workbenches, and workshop automation.
Summary of chosen products:
| Product | Bore Diameter | Housing Material | Brand | Notes |
|---|---|---|---|---|
| SHINICO Pillow Block Bearing (1/2″ Bore) | 1/2 inch | Cast Iron | SHINICO | |
| Threlaco UCFL205-16 (1″ Bore) | 1 inch | Cast Iron | Threlaco | Two-bolt flange; dust/water sealed |
| Grasshopper PTO Pillow Block | Various (PTO assembly) | Not specified | Grasshopper | OEM replacement part |
| uxcell SBPFL202-10 (5/8″ Bore) | 5/8 inch | Steel | uxcell | Two-bolt flange; robust insert |
| XIKE UCFL210 (50 mm Bore) | 50 mm | Cast Iron | XIKE | Self-aligning; sealed bearings |
SHINICO Pillow Block Bearing 1/2 Inch Bore
The SHINICO pillow block features a 1/2 inch bore and a solid cast iron base designed for self-aligning performance. Made from durable bearing steel, these units are built to withstand demanding industrial conditions while minimizing downtime. The packaged set helps reduce maintenance costs by delivering robust, long-lasting support for rotating shafts in a compact footprint.
Threlaco UCFL205-16 Pillow Block, 1 Inch Bore
Threlaco offers a 1 inch bore pillow block with a two-bolt flange design and a robust cast iron housing. These units are described as doubly sealed to resist dust and moisture, supporting reliable operation across various machines. The package emphasizes corrosion resistance and high hardness, making them suitable for workshop and light-industrial environments where ease of installation matters.
Grasshopper Mower PTO Pillow Block Assembly
The Grasshopper pillow block is designed for PTO shaft and clutch assemblies in FrontMount mowers. It focuses on reducing resistance and friction while enhancing motion, aligning with OEM specifications for Grasshopper FrontMount models. The unit fits a range of Grasshopper configurations and is marketed as a genuine replacement part, contributing to dependable mower drive performance and easier maintenance.
uxcell SBPFL202-10 Pillow Block Bearings
The 5/8 inch bore uxcell pillow block offers a steel two-bolt flange housing paired with a chrome steel set screw insert bearing. The design emphasizes reliability and straightforward installation, with a focus on bearing performance under heavy radial loads. It’s a practical choice for industrial applications requiring steady alignment and longevity.

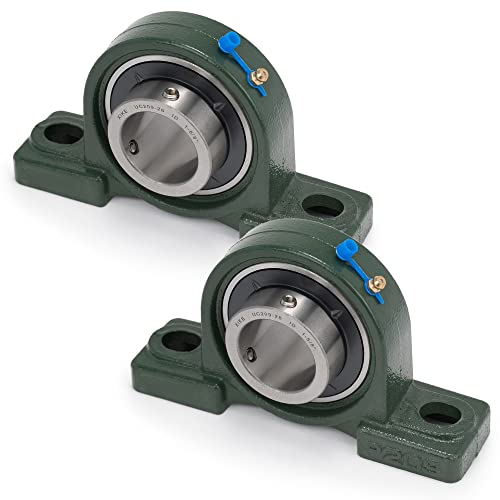

XIKE UC209-26 Bore 1-5/8″ Pillow Block
XIKE’s UC209-26 model features a 1-5/8 inch bore with a solid cast iron base and self-aligning chrome-sealed bearings. The housing is integral and painted to resist rust, providing straightforward installation and low-maintenance lubrication. This option supports higher shaft diameters and is suitable for heavy-duty machinery where precision alignment is essential.

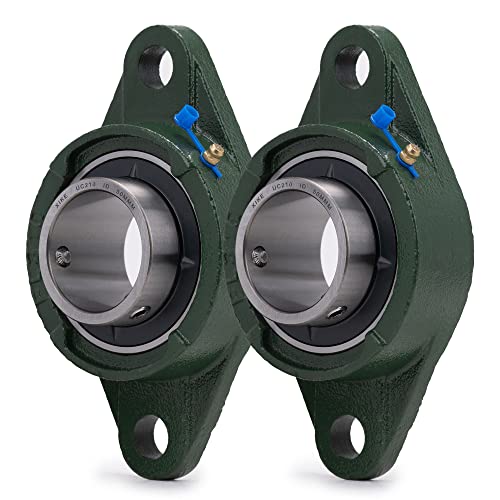

XIKE UCFL210 Pillow Block, 50 mm Bore
This XIKE model provides a 50 mm bore with a solid cast iron base and sealed chrome bearings. It emphasizes rust resistance and ease of maintenance, making it a compatible choice for a range of machinery that requires reliable, long-lasting support for rotating shafts in industrial settings.
DiGiYes 4Pcs KFL08 Pillow Block Bearings
DiGiYes provides a 4-pack of KFL08 pillow blocks with 8 mm inner bore, designed for linear shafts and T8 lead screws. The zinc alloy body offers high strength and abrasion resistance, with a compact profile suitable for precision assemblies. The included mounting dimensions support straightforward integration into compact machines or robotics projects.
Buying Guide: Key Considerations for Pillow Block Shaft Assemblies
- Shaf t bore size and compatibility: Match bore diameter with your shaft to ensure proper fit and minimal play. Common options range from 1/2 inch to 50 mm or more. Self-aligning bearings help accommodate minor misalignments and reduce stress on shafts.
- Housing material and durability: Cast iron bases offer rigidity and resistance to deformation, while steel housings provide additional strength in demanding environments. Consider corrosion resistance and operating temperature when selecting materials.
- Seal integrity and ingress protection: Double-sealed designs resist dust, water, and oil intrusion, extending service life in dirty or moist settings. For outdoor or wet environments, choose sealed units with robust outer shells.
- Mounting arrangement: Two-bolt flange vs. 0.8- to 1-inch mounting holes impacts installation flexibility and alignment. Ensure hole spacing matches your machine’s frame or support structure.
- Maintenance requirements: Some bearings require periodic lubrication; sealed bearings reduce maintenance but may have different lubrication cycles. Consider the balance between uptime and the need for routine service.
- Bearings type and performance: Self-aligning chrome steel bearings accommodate shaft misalignment and provide smooth operation under radial loads. For higher axial loads, confirm the bearing design and load ratings.
- Size and application range: Larger bore sizes (e.g., 50 mm) suit heavier equipment, while smaller bores fit hobbyist or compact machinery. Assess the whole system’s torque, speed, and load.
- Replacement availability: OEM and generic pillow blocks vary in availability and compatibility. Ensure you can source compatible replacements or upgrades if needed.
- Installation and maintenance access: Consider space around the pillow block for mounting bolts, lubrication points, and belt or chain clearance in the overall machine layout.
