Choosing a reliable outdoor request-to-exit (REX) solution is essential for secure, hands-free access control. This guide reviews five top outdoor REX devices that work with maglocks or electric strikes, focusing on sensor range, environmental durability, and integration capabilities. Each option offers motion or wave-activated entry with visibility cues for users, helping facilities manage doors efficiently while maintaining safety outdoors.
Summary of selected products
| Product | Brand | Key Benefit |
|---|---|---|
| Enforcer No Touch REX Plate Outdoor (SD-9263-KSQ) | Seco-Larm | Hands-free activation with adjustable 2–7 inch range |
| Enforcer No Touch Outdoor with Mechanical Override | Seco-Larm | Durable outdoor plate with override option |
| EMS Series Infrared REX Motion Sensor | Locknetics | Quiet, reliable IR sensing for maglocks |
| Request to Exit Motion Detector (Dioche) | Dioche | Microwave-based sensing with adjustable range |
| 4-Door REX with RFID and Exit Motion | MENGQI-CONTROL | Multi-door management with card access and exit motion |
Seco-Larm Enforcer No Touch REX Plate Outdoor SD-9263-KSQ
The SD-9263-KSQ is a weather-resistant, wave-activated exit plate designed for outdoor use. It activates when the user waves a hand in front of the sensor, delivering a visible color change in the ring indicator to confirm operation. An adjustable sensing range from 2 to 7 inches supports different door contexts, from narrow storefronts to wide entryways. This plate integrates with standard access control hardware and supports safe, hands-free egress in exterior environments.
- Wave-activated without physical contact
- Ring illuminator indicates activation status
- Sensor range adjustable between 2 and 7 inches

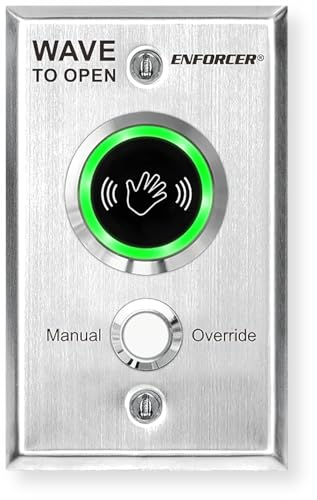

Seco-Larm Enforcer No Touch REX Plate Outdoor With Mechanical Override
This outdoor REX plate adds a mechanical override option, ensuring door access can be managed during power issues or sensor limitations. Like other Seco-Larm models, it supports hands-free operation via voice-agnostic wave detection and provides user feedback through a color-changing ring. The adjustable range, typically within a few inches, accommodates various door widths and outdoor mounting heights, making it suitable for commercial entrances that require durable, weatherproof performance.
- Outdoor-ready housing with a mechanical override
- No-touch activation via hand wave
- Visual feedback through ring color change
Locknetics EMS Series Infrared REX Motion Sensor
The Locknetics EMS Series uses passive infrared sensing for exit applications, designed to work with maglocks and electric strikes. The sensor is optimized for REX use and provides reliable motion detection at typical door approaches. An 6’6″ to 8′ mounting height range helps installers place the device at a comfortable height to detect passerby traffic without triggering false exits. This model emphasizes durability and compatibility with common access control hardware.
- Passive infrared technology for reliable detection
- Designed for maglocks and electric strikes
- Recommended mounting height 6’6″ to 8′
Dioche Request To Exit Motion Detector
Dioche’s REX motion detector emphasizes microwave sensing to deliver sensitive pedestrian detection for exterior doors. It supports a broader detection area with the ability to adjust sensing directions left, right, up, and down. The installation is presented as straightforward, with emphasis on simple setup and reliable door operation. This model aims to balance sensitivity with false-trigger reduction, suitable for outdoor entrances that see varying weather and foot traffic.
- 24.125 GHz microwave sensing technology
- adjustable detection area in multiple directions
- Claimed easy installation process
MENGQI-CONTROL REX For 4 Doors With RFID Access
This multi-door system combines RFID access control with exit motion sensing for coordinated egress across multiple doors. It supports up to 20,000 users and 100,000 records, enabling detailed monitoring and reporting. The door reader has a fast response time and a compact proximity range. A built-in software suite facilitates user registration, scheduling, and site-wide access rules, making it a strong choice for larger facilities requiring synchronized exit and entry management.
- Supports four doors with exit motion
- RFID card access and detailed reporting
- Fast response with 0.2 second speed and 5–10 cm proximity
Buying Guide: Key Considerations For Outdoor REX Devices
When selecting an outdoor REX device, consider sensing technology, environmental durability, installation height, and integration with existing access control systems. Microwave and infrared sensors vary in sensitivity and false-trigger rates; choosing the right technology depends on foot traffic and outdoor conditions. Moisture, temperature, and wind can affect performance, so look for IP-rated housings and weatherproof enclosures. If multi-door control or RFID integration is needed, prioritize devices with scalable software and robust management tools. For facilities with power issues, models offering mechanical overrides or fail-safe features can prevent lockouts during outages.
Comparative Perspectives
- Reliability: Infrared sensors (Locknetics EMS) tend to perform well in moderate weather and are widely compatible with maglocks.
- Durability: Outdoor-rated enclosures (Seco-Larm) with weatherproof construction are best for exterior doors exposed to the elements.
- Accessibility: Wave-activated plates offer hands-free operation suitable for accessibility compliance and high-traffic entrances.
- Scalability: Multi-door systems (MENGQI-CONTROL) support centralized management and larger facilities, with RFID capabilities for authorized personnel.
- Installation: Microwave-based detectors (Dioche) may require careful placement to minimize interference and ensure consistent coverage.
